Brand Name : YUEXIN
Place of Origin : Guangdong, China
Model Number : YX-IPX56BS-700L
MOQ : 1
Price : $28,500-34,500
Power : 2500W
Power supply : AC380V 50HZ
Model : YX-IPX56BS-700L
Weight : 500kg
Control : 7 Inch Touch Screen
Inner Size : L900*D900*H900mm
External dimensions : L3640*D920*H1720mm
Turntable diameter : 600mm
Nozzle diameter : 6.3mm(IPX5);12.5mm(IPX6)
Water Flow : 12.5±0.625L/min(IPX5);100.0±12.5L/min(IPX6)
Flow control method : Manual adjustment (rotameter)
Water spraying distance : Approximately 2.7 meters
Turn table load bearing : 50KG
Water spray height : 0-800mm
Test time : 0-999min








Model | YX-IPX56BS-700L |
Inner Size | L900*D900*H900mm |
External dimensions | L3640*D920*H1720mm |
Turntable diameter | 600mm |
Nozzle diameter | 6.3mm(IPX5);12.5mm(IPX6) |
Water Flow | 12.5±0.625L/min(IPX5);100.0±12.5L/min(IPX6) |
Flow control method | Manual adjustment (rotameter) |
Water spraying distance | Approximately 2.7 meters (distance from nozzle to center of turntable) |
Fixing method of spray gun | Mechanical fixation (program setting, adjusting spray gun angle) |
Turn table load bearing | 50KG |
Turn table lifting height | Non lifting (fixed) |
Water spray height | 0-800mm |
Test time | 0-999min |
Protection device | Leakage, water shortage, short circuit |
Voltage(V) | 380V |
Power(KW) | 2.0KW |
Standard | IEC60529:1989+A1:2013,ISO20653,IEC60598,DIN40050 |













|
|

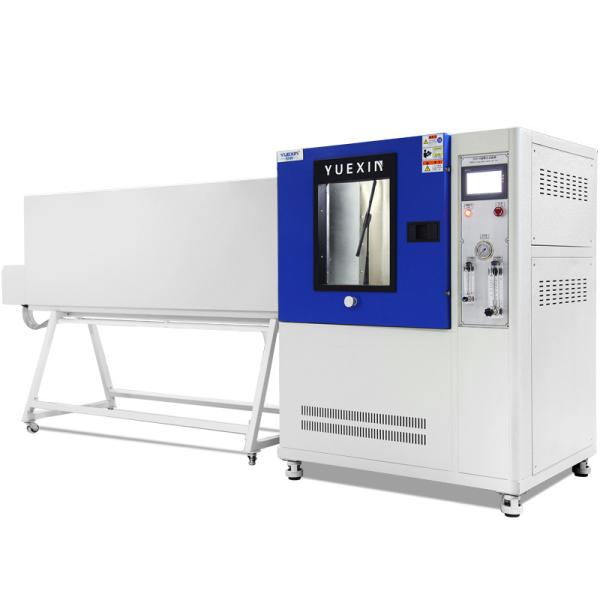

IEC60068 IPX5 & IPX6 Water Jet Testing Equipment with 7 Inch Touch Screen and 2500W Power for Waterproof Performance Testing Images |
